您現在的位置：產品中心 > 沖孔

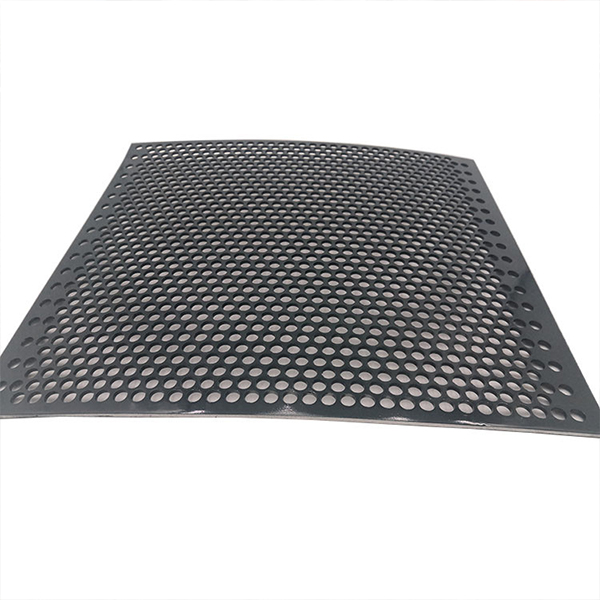

沖孔網產品圖片
沖孔網產品圖片
沖孔網和沖孔板，圓孔網是同一個產品沖孔網是我們廠非常重視的產品研發上用了很多心思，沖孔網是用不同材質經過數控沖床沖壓而成的，現在大家對沖孔網要求越來越高要能做出高精端的產品對模具的要求那是非常高所以我們近幾年用心鉆研目前像網孔最小現在可以做0.4mm~1mm的微孔平整度誤差在0.1~2mm，孔型花樣也積攢許多生產經營，我廠目前生產設備工藝有重型沖，磚塔沖孔，微孔，沖孔網孔型，板厚，孔和距大小，材質，表面處理方式都是可以選擇的，我廠也有現貨供應都是常規規格材質是冷板，鍍鋅板，不銹鋼304，孔型都是默認圓孔，孔和距大小都是常規規格，板厚0.5~2mm，外形尺寸1000mm*2000mm，我廠生產的沖孔網嚴格按照工業用金屬?zèng)_孔網技術要求和檢驗方法等同于采用ISO 10630：1994（工業用金屬穿孔板，技術要求和檢驗方法）（英語版）中華人民共和國國家標準GB/T 19360—2003/ISO 10630：1994中華人民共和國國家質量監督檢驗檢疫總局發布2004-06-01實施版（ISO 10630:1994,IDT）有需要的聯系河北逍迪絲網制品有限公司為你報價
Punching net and punching plate, round hole net is the same product, punching net is our factory attaches great importance to the product research and development with a lot of thought, punching net is made of different materials through CNC punch, now we have higher and higher requirements for punching net, to be able to make high-end products, the requirements for mold is very high, so we study hard in recent years, at present, like the mesh is the smallest We can make 0.4mm ~ 1mm micro hole, the flatness error is 0.1 ~ 2mm, and the hole pattern has accumulated a lot of production and operation. At present, our production equipment and process include heavy punching, brick tower punching, micro hole, punching mesh, hole type, plate thickness, hole distance, material and surface treatment method. Our factory also has spot supply, and the materials are conventional specifications, including cold plate, galvanized plate and stainless steel 304 The hole type is the default round hole, and the hole and distance size are conventional specifications. The plate thickness is 0.4 ~ 2mm, and the overall size is 1000mm * 2000mm. The punching mesh produced by our factory strictly complies with the technical requirements and inspection methods of industrial metal punching mesh, which is equivalent to the national standard GB / T of the people's Republic of China (ISO 10630:1994) 19360-2003 / ISO 10630:1994 General Administration of quality supervision, inspection and Quarantine of the people's Republic of China issued the implementation version of 2004-06-01 (ISO 10630:1994, IDT)
一般同城或者是安平縣附近的是可以送貨上門的，遠的都是發物流，量大的可以包車，量小的發物流配貨也可以送貨上門，樣品有的發物流太小的就走快運或者快遞了，不用擔心運輸和沒有車問題因?yàn)榘财娇h有一個很大的物流園區發往全國各地
Generally, the goods in the same city or near Anping County can be delivered to the door, while the goods far away can be delivered to the door. The large quantity goods can be chartered, and the small quantity goods can also be delivered to the door. Some samples can be delivered by express or express if the logistics is too small. There is no need to worry about transportation and no cars, because Anping County has a large logistics park to send to all parts of the country
常規1孔1距，2孔2距，3孔3距，5孔2距，5孔3距，5孔5距，8孔4距，10孔3距，10孔5距（孔大小和間距也可以按你要求定做）
Conventional 1 hole 1 pitch, 2 hole 2 pitch, 3 hole 3 pitch, 5 hole 2 pitch, 5 hole 3 pitch, 5 hole 5 pitch, 8 hole 4 pitch, 10 hole 3 pitch, 10 hole 5 pitch (hole size and spacing can also be customized according to your requirements)
本廠規定了用于篩分的工業用金屬?zèng)_孔網的技術要求和檢驗方法，規定了工業用金屬?zèng)_孔網，包括平板卷板，現貨的普通用途，標準用于GB/T 10611中最大厚度為80mm厚的低碳鋼板，公稱尺寸符合GB/T 10612和GB/T10613中0.1mm-300mm圓孔和0.1-300mm方孔等孔型
The factory has stipulated the technical requirements and inspection methods of industrial metal punching mesh used for screening, and specified the general use of industrial metal punching mesh, including flat plate, coil and spot. The standard is used for low carbon steel plate with the maximum thickness of 80mm in GB / T 10611, and the nominal size meets the pass patterns of 0.1mm-300mm round hole and 0.1-300mm square hole in GB / T 10612 and GB / t10613
張板寬度不超2.5米長度不超6米，張板外形尺寸控制在2.5m*6m范圍內就可以了現貨一般都是1000mmX2000mm尺寸，卷板是一卷的高度為1000mm長度為20米一卷
The width of the sheet is not more than 2.5 meters, the length is not more than 6 meters, and the overall dimension of the sheet is controlled within the range of 2.5 m * 6 m. The stock is generally 1000 mm x 2000 mm, the height of the coil is 1000 mm, and the length of the coil is 20 meters
Straight row: straight row is a straight line of mesh holes, so it is straight row
The best way to arrange the shape of plum blossom is to arrange the shape of the plum blossom with high intensity and frequent use. Generally speaking, the default is 60 ° for wrong arrangement
Compared with 60 ° and 45 ° staggered, 45 ° has a different flavor choice
冷板，鍍鋅板，熱板，鋁板，不銹鋼這五個用的比較普遍pp板，pvc板，高錳鋼板，銅板（合金板還分1系，6系，7系，5系，4系，3系，2系，1系為常用系類）（不銹鋼分為201，304，304L，316，316L其中304用量最多一般說要不銹鋼的都是默認報價304材質）
Cold plate, galvanized plate, hot plate, aluminum plate and stainless steel are common used in PP plate, PVC plate, high manganese steel plate and copper plate (alloy plate is also divided into 1 series, 6 series, 7 series, 5 series, 4 series, 3 series, 2 series and 1 series are commonly used types) (stainless steel is divided into 201304304l and 316316L, of which 304 is the most commonly used stainless steel material with the default quotation 304 material)
冷板都是薄板0.4mm~2mm，熱板都是厚板2mm厚以上都是熱板，鍍鋅板0.4mm~4mm,不銹鋼板普通是0.8mm~3mm在厚也有，鋁板0.4mm~8mm為普通板在厚也有，卷板0.2mm~1mm太好卷板很少不代表沒有
Cold plate is thin plate 0.4mm ~ 2mm, hot plate is thick plate, 2mm thick or more is hot plate, galvanized plate 0.4mm ~ 4mm, stainless steel plate is 0.8mm ~ 3mm in thickness, aluminum plate 0.4mm ~ 8mm is ordinary plate in thickness, rolling plate 0.2mm ~ 1mm is too good, rolling plate rarely does not mean No
噴漆工藝，烤漆工藝，不銹鋼可以選擇拋光工藝，鋁板可以選擇陽極氧化工藝，拉絲工藝，熱鍍鋅工藝，冷鍍鋅工藝，電鍍鋅工藝，噴塑工藝又叫粉末噴涂
Painting process, baking process, stainless steel can choose polishing process, aluminum plate can choose anodizing process, wire drawing process, hot galvanizing process, cold galvanizing process, electro galvanizing process, plastic spraying process, also known as powder spraying
像噴塑，噴漆，烤漆表面處理顏色是可以選擇的黃色，綠色，紅色，橙紅色，橙色，橙黃色，黃色，黃綠色，藍綠色，藍色，藍紫色，紫色，紫紅色，護欄綠，護欄黃，要量大的還可以配色因?yàn)楸热绾谏€分深黑色淺黑色啞光黑等，深多少淺多少都是可以讓師傅調配出來
Like spray, spray paint, baking paint, surface treatment color is optional, yellow, green, red, orange red, orange, orange yellow, yellow, yellow green, blue-green, blue, blue purple, purple, purplish red, guardrail green, guardrail yellow, a large amount of color can also be matched, because for example, black is also divided into dark black, light black, matte black and so on, how deep and how shallow can let the master adjust Match it

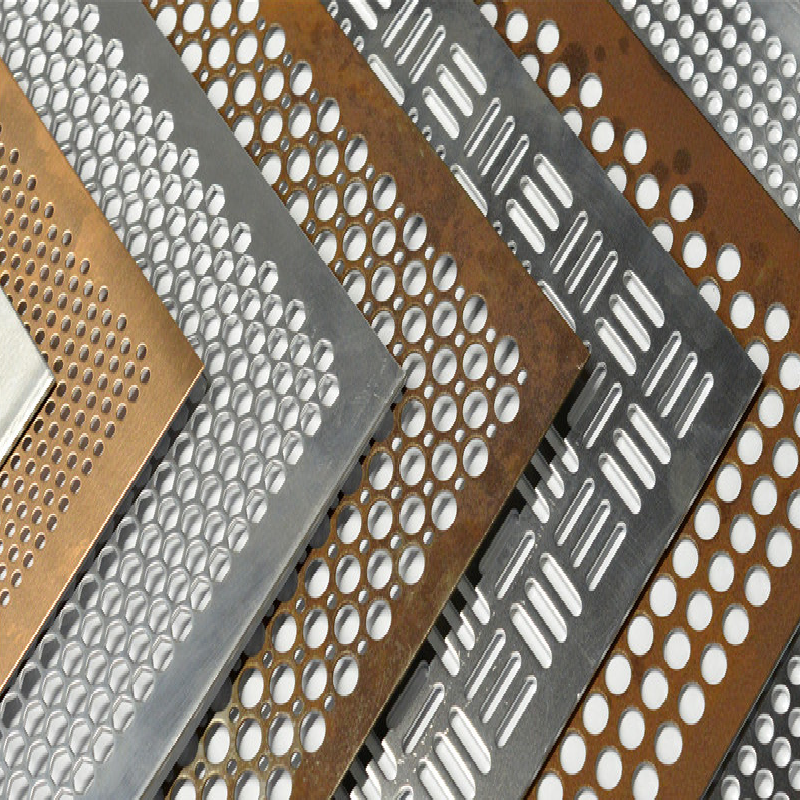

The most common hole is round hole, followed by hexagonal hole, long hole, square hole, fish scale hole, oblong hole, rectangular hole, special-shaped hole, bulging hole, louver hole, bridge hole, diamond hole, Pentagon hole, eight shaped hole, cross hole, nail hole, plum blossom hole, herringbone hole, I-shaped hole, micro hole, large diameter hole, crocodile mouth, long hole, triangle hole, and some others can not be named Provide pattern or CAD drawing to arrange production for you
Our factory also has the spot supply is the conventional specification, the material is cold plate, galvanized plate, stainless steel 304, the hole type is the default round hole, the hole and distance size is the conventional specification, the plate thickness is 0.4 ~ 2mm, the overall size is 1000mm * 2000mm
The surface roughness can not rule out the slight damage of metal sieve plate due to mechanical action in the punching process. When the damage will have a significant impact on the intended use, the buyer should negotiate with the manufacturer before ordering to improve the cleanliness. The surface of metal sieve plate is usually covered with a thin oil film, and there should be no excessive oil leakage after stacking. The deoiled Xu metal sieve plate, such as solvent or steam treatment, can leave the factory under permitted conditions. For low carbon steel, if there is no subsequent protective treatment, it is not suitable for deoiling
For the following dated references, all subsequent amendments or revisions are not applicable to this standard. However, parties to agreements based on this standard are encouraged to study whether the latest versions of these documents can be used. For undated references, the latest edition is applicable to this standard
GB / T 10611-2003, ISO 2194:1991 industrial screens woven wire cloth, enforced plate and electroformed sheet design and nominal sizes of openings (MOD)
GB / T 10612 industrial sieve plates - circular and square sieve plates with plate thickness < 3mm (GB / T 10612-2003, ISO 7805-2:1987, industrial plate screens Part 2: thickness below 3 mm, MOD)
GB / T 10613: industrial plate screens Part 1: thickness of 3 mm and above, mod
For the tolerance of mesh size and spacing of round hole and square hole, when the thickness of perforated plate is equal to or greater than 3mm, it shall be in accordance with GB / T 10613; when the thickness of perforated mesh plate is less than 3mm, it shall be in accordance with GB / T 10612
Plate thickness, plate thickness should be less than the basic size of the screen and less than the width of the rib, according to the user's requirements, the two sides have another agreement (Note 3: the uniformity of the punching mesh before punching depends on the actual tolerance used in the binding, and conforms to the so-called "manufacturing tolerance". If there are special tolerance requirements, they should be agreed before ordering.)
The tolerances of plate width and length, plate width A1 and plate length B1 of shear plate are given in Table 2. (Note 4: the common size of sieve plate is the size after punching and roller leveling but without shearing. In this case, due to the extension of punching process, the deviation of width and length will be greater than the actual tolerance of non punching material produced by the binding plant, so the tolerance in Table 2 is not applicable.)
Vertical deviation, the vertical deviation C of shear plate, is usually expressed as "vertical deviation percentage". It can be quantitatively expressed as the vertical projection of the transverse side (plate width A1) on the longitudinal side (plate length B1), which is the percentage of A1. Calculate as follows: vertical deviation percentage = 100c-a1, vertical deviation tolerance is given in Table 3
The tolerances for edge width, e and F are given in Table 4
Flatness, after punching the sieve plate with the roller leveling, the flatness tolerance is given in Table 5. The applicable range of sieve plate is: the longest length is 200mm; the side width is not more than the thickness of plate T + 0.5p; the screen area is 20% - 40%. The tolerance of the outside or non punch area unevenness of the punching net shall be determined before ordering
訂貨須知：當您在我廠下單之后，您只要放心的在家坐等收貨就可以了，接下來的事由我們?yōu)槟瓿桑覀兊呢?fù)責人員開始下單排產，按照您的需求將您所需要的沖孔板認真的完成，然后我們會和您溝通好收貨方式，為您找到您最方便接貨的物流，是整車，還是配貨，為您計算好，談好最合適的價格，再為您的產品穿上一層防護衣，保證它完好無損的送到您的家里
生產周期：根據客戶訂單量的大小和您商談好生產周期
付款方式：選擇我們之后，預付30%，生產完成后，我們會通知您，您將剩余的貨款打到我方賬戶，我們開始為您發貨
產品包裝：根據產品的精度和用途，我們會選擇簡裝或是精裝，以保證貨品的安全（可以溝通）
運輸方式：本地有通往全國各地的物流，可以零擔，整車，配貨，陸運，空運，海運和TNT，DHL，F(xiàn)EDEX，UPS，EMS，快遞，小件快運，我們會和客戶商量好，為您選擇最經濟合適的運輸方式，絕不讓您多花一分錢
質量保證：客戶收到貨后5天內，如發現材質不達標，規格有誤，我們將無條件為您退貨或調換，如是對方下單有誤，我們只能努力幫助您改進到最好為止，這便是我們河北逍迪絲網制品有限公司最人性化的服務方式，您準備好了嗎？我們時刻準備著，隨時歡迎全國各地的新老客戶來電咨詢和來廠參觀考察定做
河北逍迪絲網制品有限公司是專業生產沖孔網的廠家，擁有10年以上的生產經營，在這幾年中本廠憑著誠信經營的理念不斷擴大，我們沖孔網工廠生產設備有：普通沖壓機，高速?zèng)_壓機，自主研發小微孔沖壓機，龍門沖，磚塔沖孔，重型沖孔機，萬瓦級別激光切割機，3000W激光切割機，焊接設備，折彎?rùn)C(jī)，校平機，剪板機，精密校平機，（對板面平整度要求苛刻的客戶群體0.5-2mm誤差）通過了ISO9001認證SGS認證，合格證，等資質，我廠憑著產品質量好精品多信譽好價格合理的優勢把產品銷售到了國內和國外，相信選擇我們你是對的選擇，誠信是基石，質量是保證，雙贏是目標，信任在第一次合作開始，滿意在第一服務后產生，河北逍迪愿以自己的智慧，人品，產品，攜手商界同仁，共創美好明天
